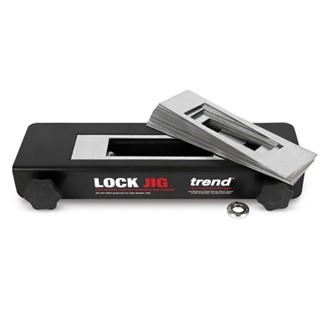

TREND LOCK JIG

Order code: 20-155
Availability This product is currently Unavailable
Safe & Secure Payment
  • Next Day Delivery
  • Standard Delivery
  • Instore Collection
£117.92 (£98.27 ex VAT)
Out of Stock
This jig uses a set of interchangeable templates & with a router will cut the mortise & face-plate recess for popular door locks.


  • For most common sash mortises & dead locks, with up to 3 inch deep mortises & a 7/8 inch or 1 inch face-plate.

  • Deeper mortises can be achieved with a suitable size of auger bit.

  • Fast, clean & accurate results on doors 34mm to 58mm thick, even in hardwood.

  • Steel plates & body.

  • An auger bit and drill is required to complete deep mortises.

  • The jig requires a 1/2- inch plunge router with a 80mm plunge, fitted with a 30mm guide bush with 6mm spigot & 12mm diameter long reach cutter. A 1/4-inch plunge router can be used for the face plate but will not achieve full depth of mortise.

  • Other sizes of template available to special order, please contact Trend Technical Support for more information.
