TREND COMBINATION ROUTER BASE

Order code: 20-151

This product has been discontinued.

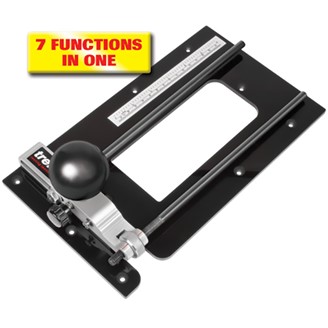

The Combination Router Base is a retro fit, quick change, multi-functional router base designed to:


  • Increase the overall versatility of the router.

  • Improve the quality of finish of every routing pass.

  • Reduce the possibility of error.

  • Increase stability during routing.

  • Increase the level of precision achieved.

  • Save set up time between tasks.

  • Save space on storing hand made jigs.

  • The CRB has seven functions - an offset baseplate, router compass from 19mm to 224mm radius, adjustable trenching with a clamp guide with 40mm micro adjustment, adjustable anti-tilt support, adjustable mortising of timber from 50mm to 200mm width, adjustable false panel groove copier and also enhances the Varijig frame system as an anti-tilt device when used with routers that can accept Euro style guide bushes (a special guide bush ref GB40/B is required).

  • The CRB will fit most routers with two 8mm, 10mm and 12mm fence rod holes at centres of 78mm to 130mm.

  • An accessory quick fit edge trimming base is available for trimming lipping up to 16mm wide and 6mm projection, ref. CRB/TB.

  • Larger circles can be accommodated by using ccessory extension rods ref. N/COMPASS/AEX to increase radius by 560mm.

  • Design Reg. No. 3003693.
